Features

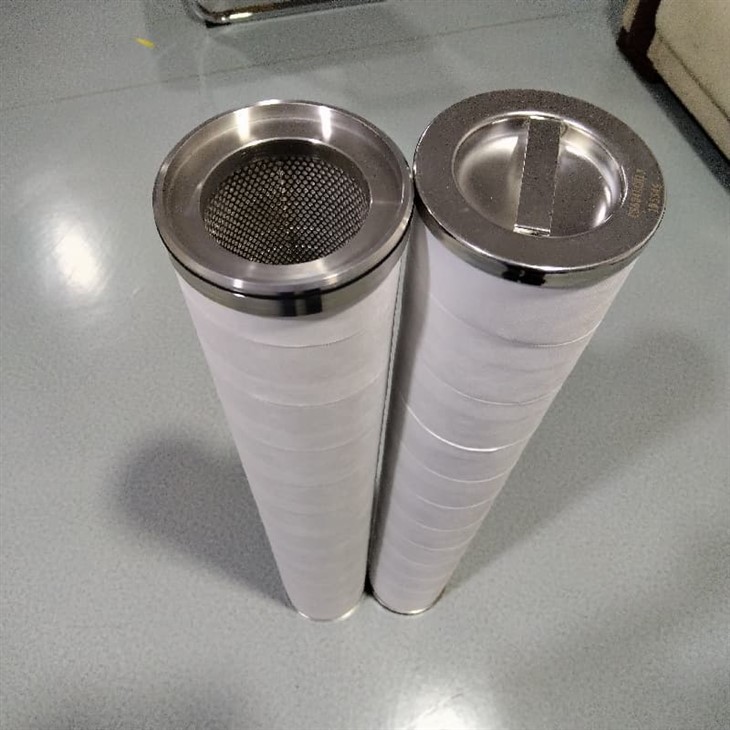

water-oil separation 650x100 filter element. A coalescing filter element is a specialized filtration component designed to remove fine liquid droplets (such as water, oil, or other immiscible liquids) from a gas or fuel stream. It works by forcing the contaminated fluid through a multi-layered matrix of microfibers, where small droplets collide, merge (coalesce), and grow into larger droplets. These larger droplets then shed from the fiber surface due to gravity or fluid flow and are collected in a sump or drained away. Common applications include compressed air systems, fuel polishing, natural gas processing, and hydraulic oil purification. The element typically features high filtration efficiency, low pressure drop, and long service life. water-oil separation 650x100 filter element.

Product Name	Air Filter Element
Filter Material	Ptfe Coating, Polyester Fiber Non-Woven Fabric, Wood pulp fibers, Nanofibers, Carbon fibre, Etc
Frame Material	Iron, Stainless Steel, Aluminum, Plastic, Customized
Size	Customize according to the provided drawings
Filter Precision	1-100μm
Structure	Frame, End Cap, Seal Ring, Galvanized Mesh, Glass Fiber, Corrifations
Internal diameter	45MM
External diameter	75MM
Height	790MM
Inner and outer skeleton	Zinc infiltrated diamond mesh
Sealing gasket	Nitrile
Middle filter layer	Teflon
Filtration	0.5-200micron
