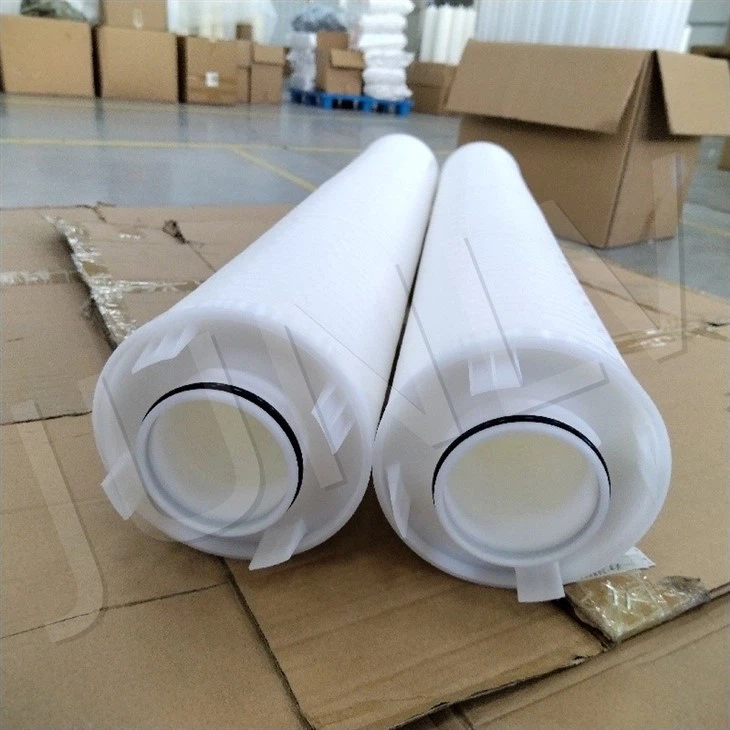

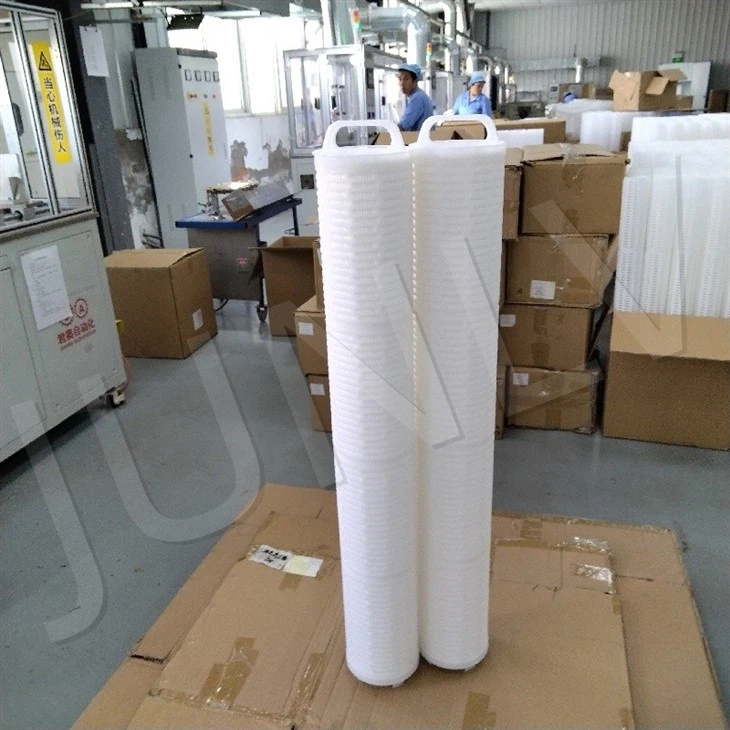

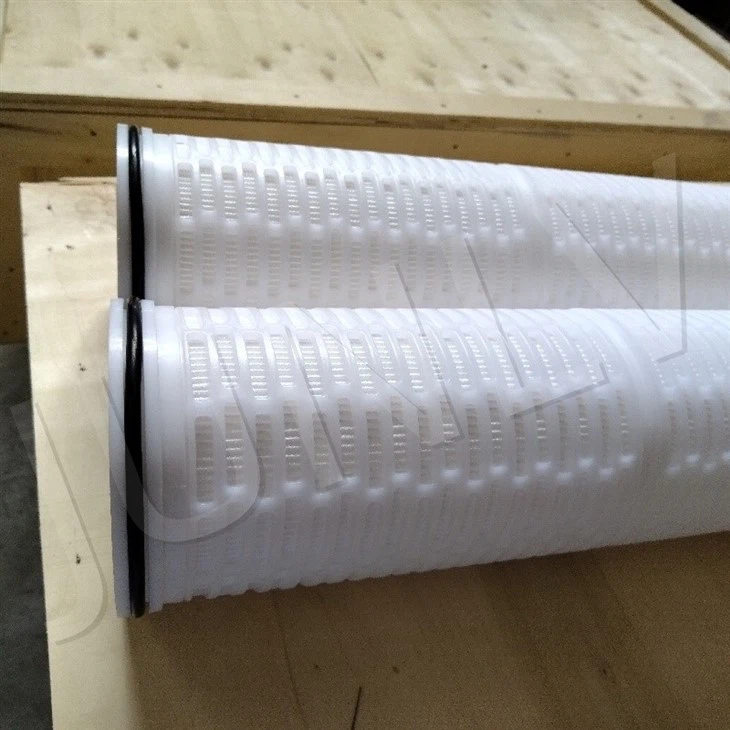

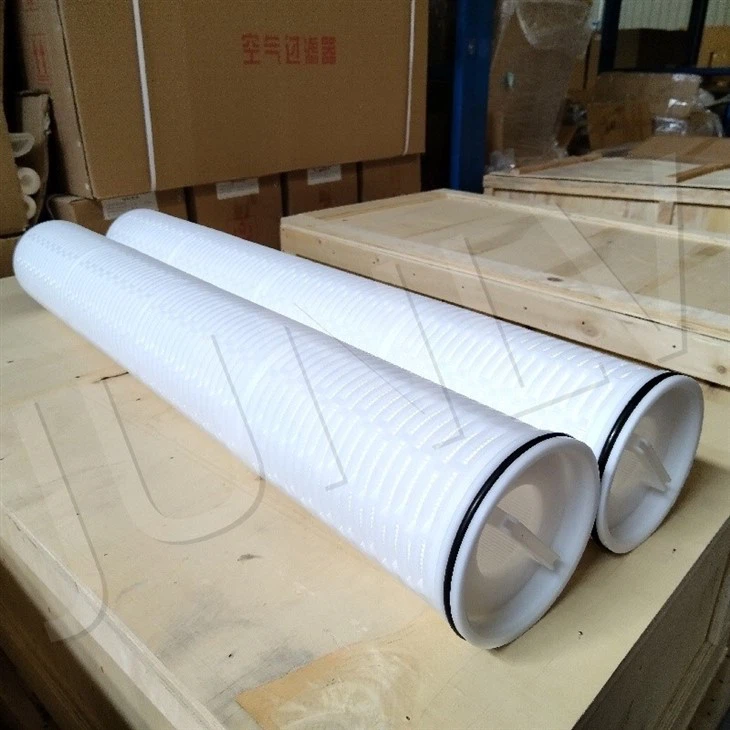

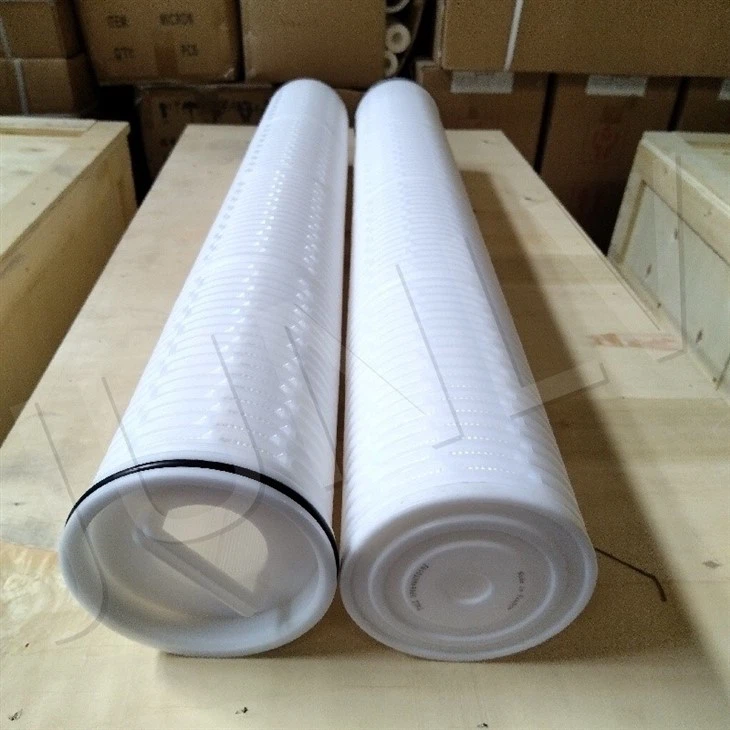

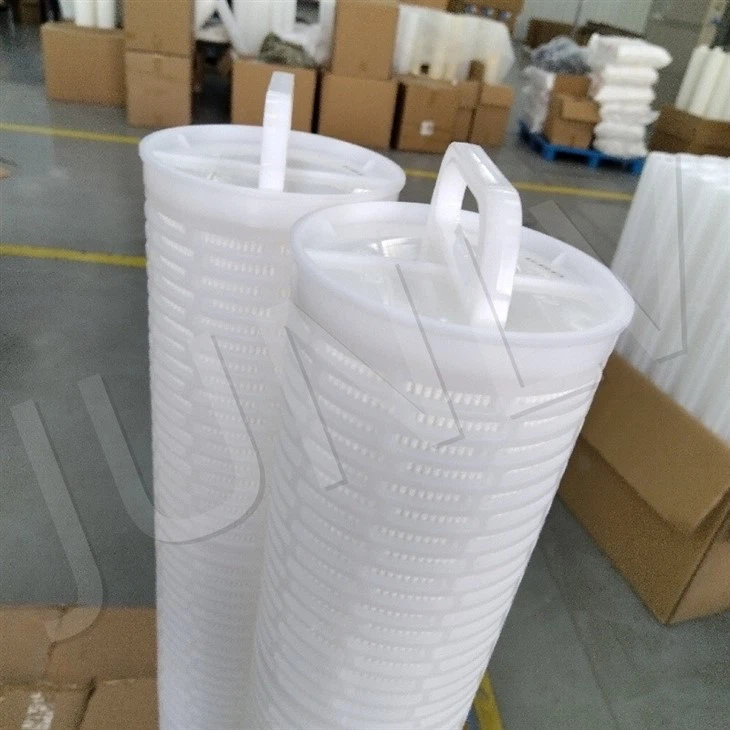

High Flow Folding Filter Element
International Standard-Conforming Ship Ballast Water Filter Element .This filter element is a high-performance filter element designed specifically for high flow liquid filtration scenarios. Drawing on the core technology and structural design of 3M filters, it optimizes filter material selection and folding processes to achieve high flow processing capacity while ensuring filtration accuracy. It has strong adaptability and high cost-effectiveness, and can widely replace original filter cartridges for liquid filtration systems in industries such as water treatment, electricity, pharmaceuticals, food and beverage, effectively reducing filtration costs while ensuring filtration efficiency.International Standard-Conforming Ship Ballast Water Filter Element.
|
Filter Media |
Polypropylene membrane |
|
Micron Rating |
0.50, 1.0, 3.0, 5.0, 10, 20,50, 70,100 um |
|
Support Layers |
Polypropylene |
|
Cage, Core, End Cap |
Polypropylene |
|
O-rings/gaskets |
Silicone, Nitrile, EPDM |
|
Seal Method |
Thermal Bonded, No Adhesives |
|
Outer Diameter |
160mm with cage |
|
Length |
20 inch, 40 inch, 60 inch |
|
End Cap |
HFP, HFD, HFM, etc |
|
Filtration Area |
13 ㎡/40 inch |
|
Normal Operating Temp. |
Up to 60℃ |
|
Max.Operating Temp. |
80℃ at P≤1.0 bar |
|
Max. Operating Pressure |
4.2 bar at 25℃ |
|
Recommended change out differential pressure |
2.5 bar at 25℃ |
|
Normal Flow Direction |
Inside to outside |
|
PH Value compatibility |
1-13 |
