Products Description

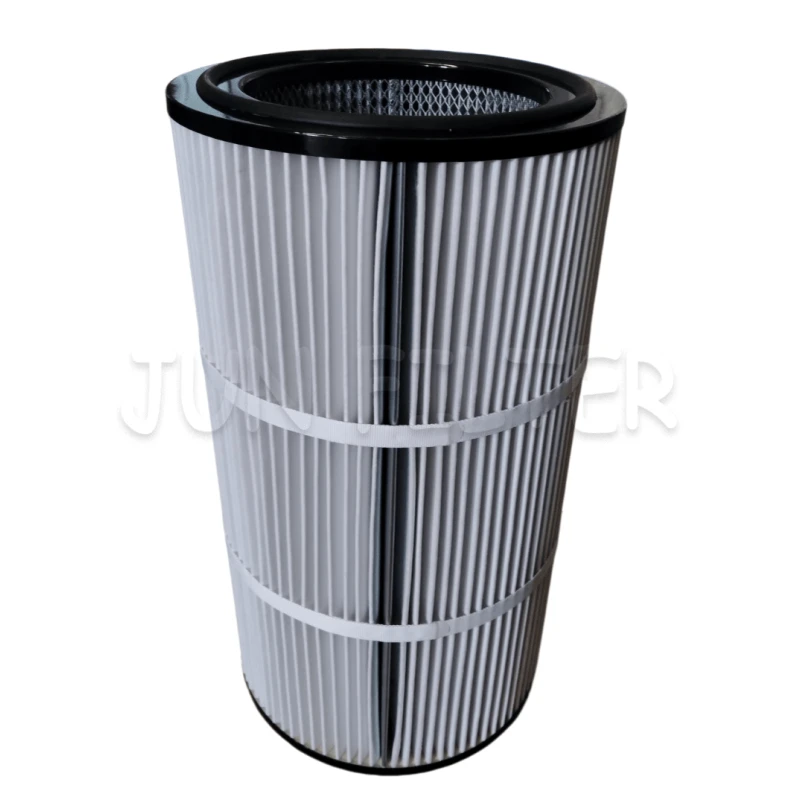

High Capacity Pleated Dust Collector Filter Cartridge 1227733 is a direct installation replacement filter element for industrial dust collectors.
Using large pleated filter media, increasing the filtration area, having a large dust holding capacity, good air permeability, and extending the service life. The metal support mesh is lined inside the cylinder to prevent the filter material from collapsing and deforming due to negative pressure, thereby enhancing the overall strength. White strapping is used to reinforce and fix the folds of the filter material, preventing it from scattering during high-pressure blowback. Compact structure, easy to install and replace quickly.
Provide OEM and customization options.

High‑capacity deep‑pleated design, larger effective filtration area and high dust‑holding capacity

High‑efficiency filter media, excellent interception for fine dust and powder particles

Good mechanical strength, long service life, less maintenance frequency

Tight end‑cap sealing structure, avoid air leakage and bypass dust

Products Details

Top sealing ring

Fit with the device end cover to prevent air leakage

Upper cover

Fix the top of the filter element and apply pressure

External folding filter material layer

Increase the filtration area to intercept dust

Internal support skeleton

Support filter material to prevent collapse and guide flow

Products Specification

Product Name	High Capacity Pleated Dust Collector Filter Cartridge
Part Number	1227733
Inner Support	Galvanized steel protective mesh
End cap	Plastic / metal end cap with rubber sealing gasket
Installation	Direct replacement

Products Application Fields

High Capacity Pleated Dust Collector Filter Cartridge is widely used in multiple industrial filtration systems.:

Metal grinding, polishing and sanding workshop

Wood processing, furniture sanding dust collection

Chemical, pharmaceutical and food powder recovery

Cement, building material processing workshops

Our Service

Packing and sending

packing is sturdy and shipping speed is very fast.

packing and sending

How To Cooperate With Us?

Our address

Xinxiang, Henan, China

Phone Number

+8618738502673

E-mail

admin@junlvfilter.com

FAQ

Q1: What is the main advantage of 1227733 high‑capacity pleated filter cartridge?

A1: Deep pleated structure provides larger filter area and higher dust‑holding capacity. It accepts pulse jet cleaning, extends service life and reduces filter replacement times.

Q2: What is the service life of this dust collector filter cartridge?

A2: Service life depends on dust concentration and working environment. Normally 3‑12 months with proper pulse cleaning.

Q3: Does this filter cartridge directly replace original 1227733?

A3: Yes, it is direct‑fit aftermarket replacement for part number 1227733, no modification required.

Q4: Do you accept OEM orders?

A4: Yes, we support OEM, custom dimensions, filter media and logo printing according to your requirements.
