Products Description

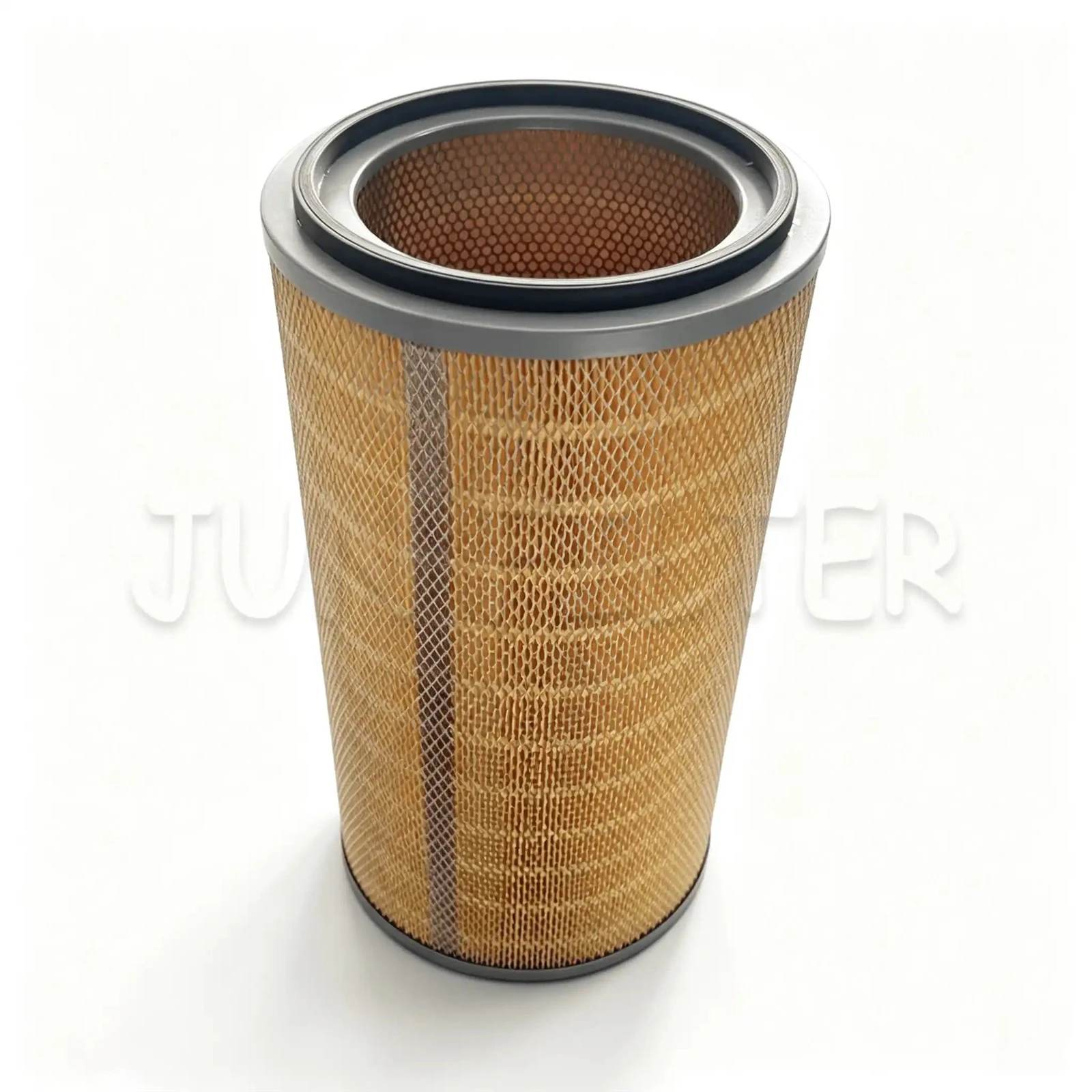

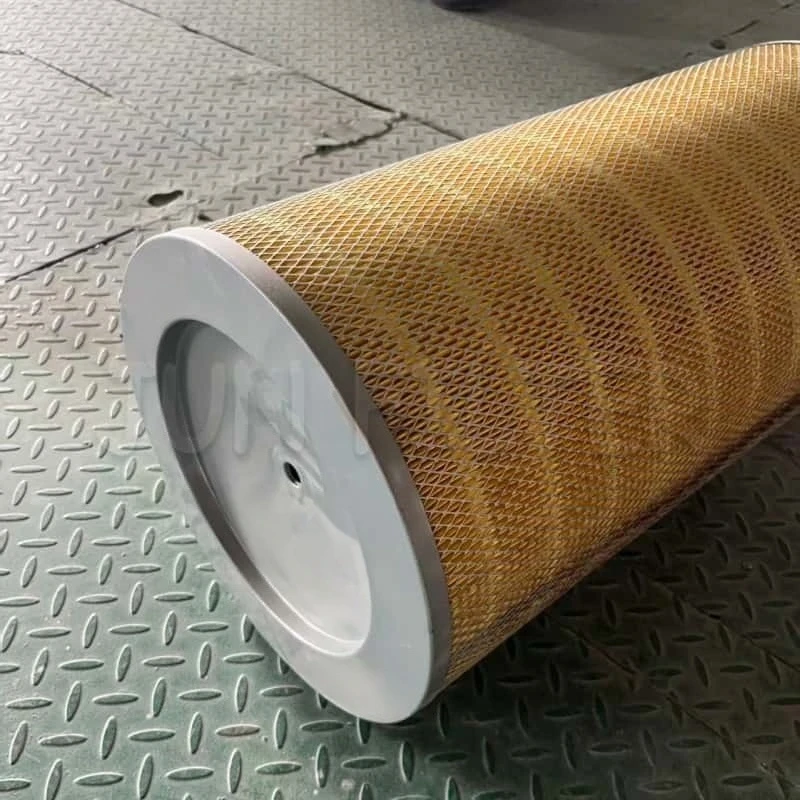

The Heavy-Duty Air Filter Element is a spare part for heavy-duty intake filtration, designed specifically for compressors and heavy machinery operating in dusty and harsh industrial environments.
It adopts high-quality composite filter paper, inner and outer metal protective nets, double-layer rubber sealing rings, and metal upper and lower end cover structures. Large wrinkled area, strong ash holding capacity, and extended service life. When the air compressor sucks in air, the outside air flows through the pleated filter paper, and dust impurities are intercepted on the outer surface of the filter paper. The filtered clean air enters the interior of the air compressor main body, with low intake resistance, reducing the energy consumption of the air compressor and extending its service life.
We provide customized services, and customers can customize according to size, model, and drawings.

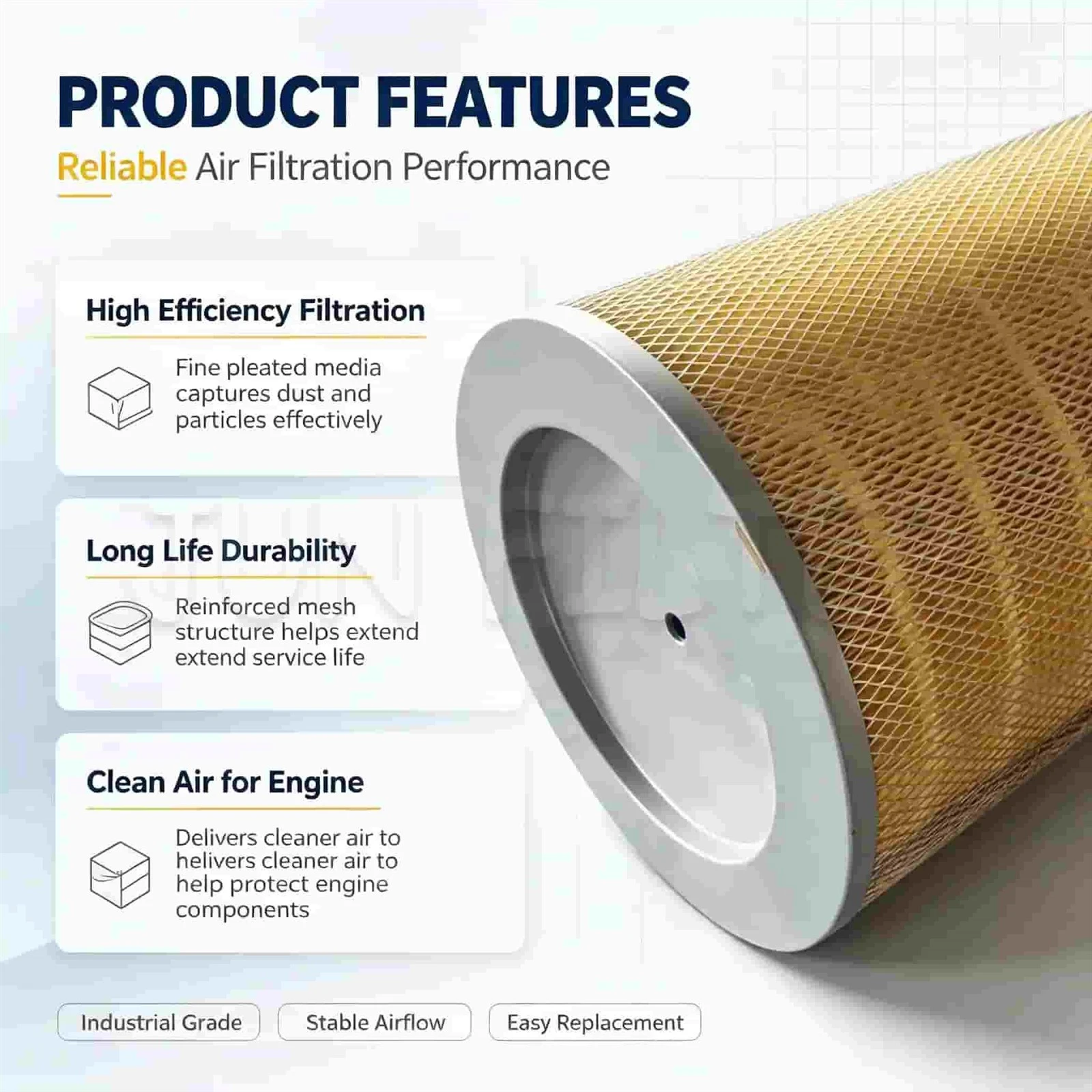

High-strength pleated filter media

Enlarged pleated filtration area, reduce early clogging, prolong service cycle

Sturdy and durable

Robust end‑cap and structural design, good vibration and shock resistance

High sealing performance

High‑reliability sealing structure, effectively prevent unfiltered air bypass leakage

Easy to disassemble and install

Circular cylindrical structure , easy to disassemble and assemble, suitable for air compressor intake assembly

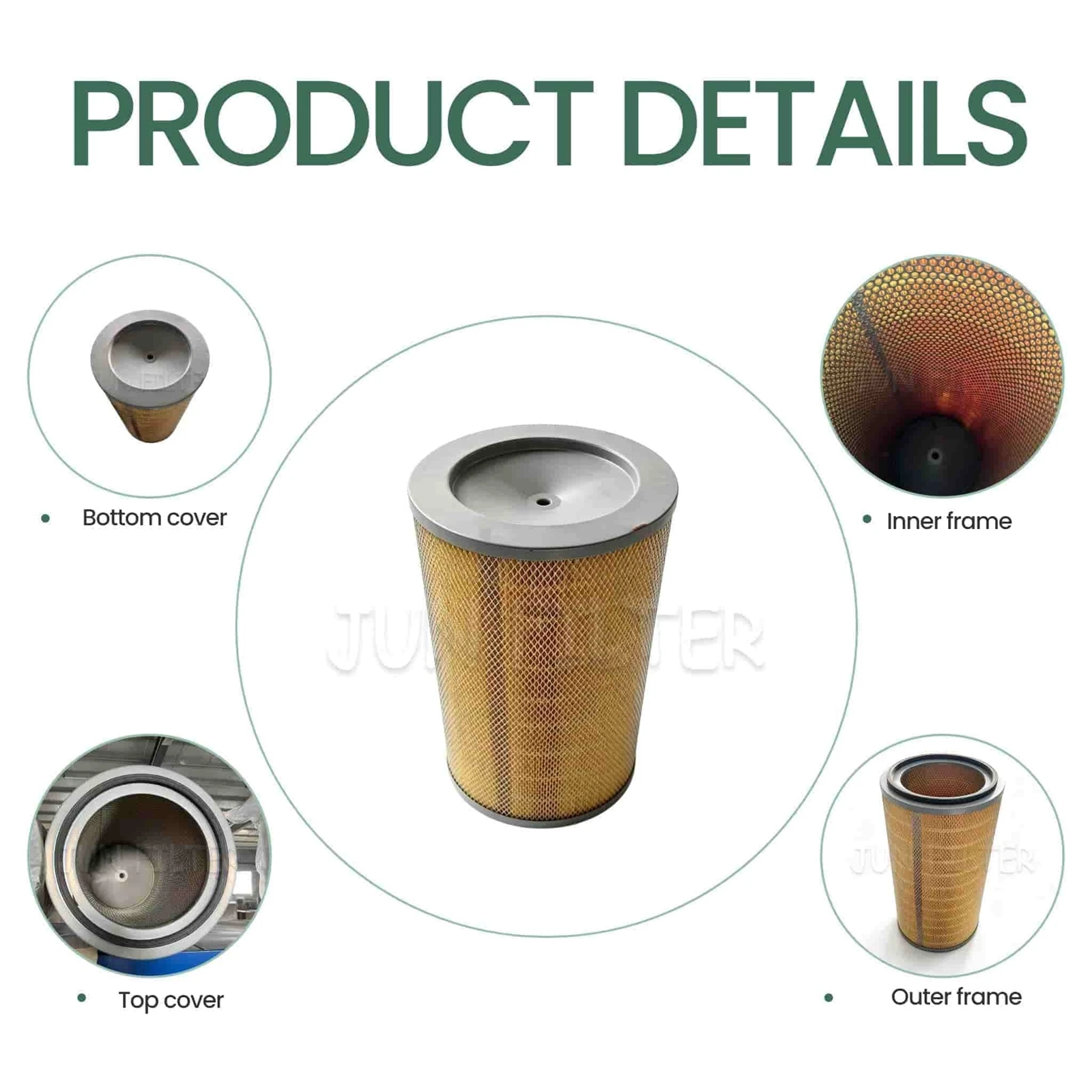

Products Details

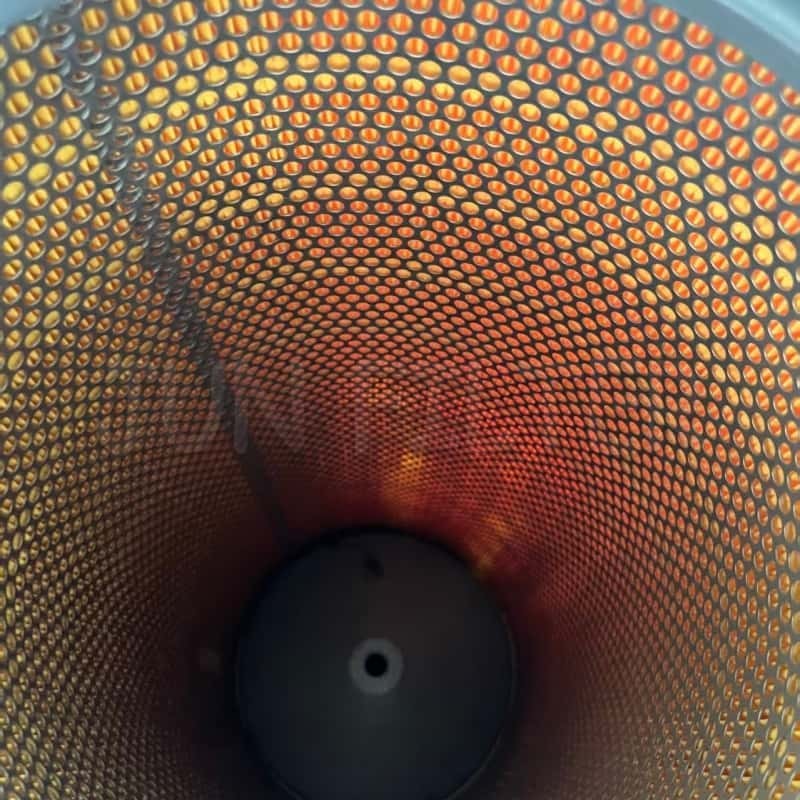

Internal support metal mesh

Supporting filter paper to prevent collapse and stabilize the structure

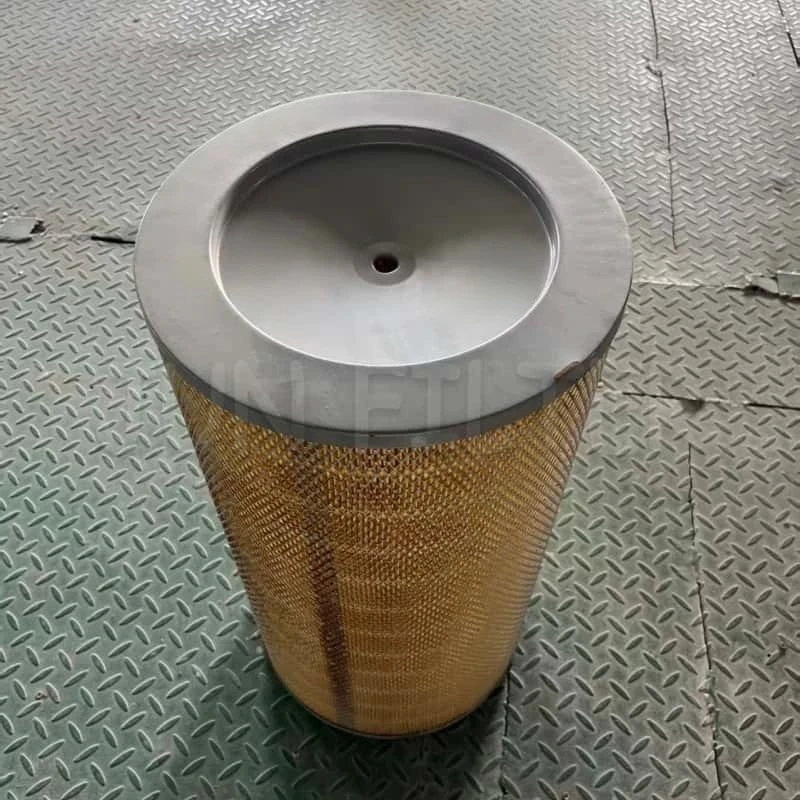

Metal end cap

Fix the filter structure and connect it to the equipment

Outer metal mesh

Protect the filter paper and evenly distribute the airflow

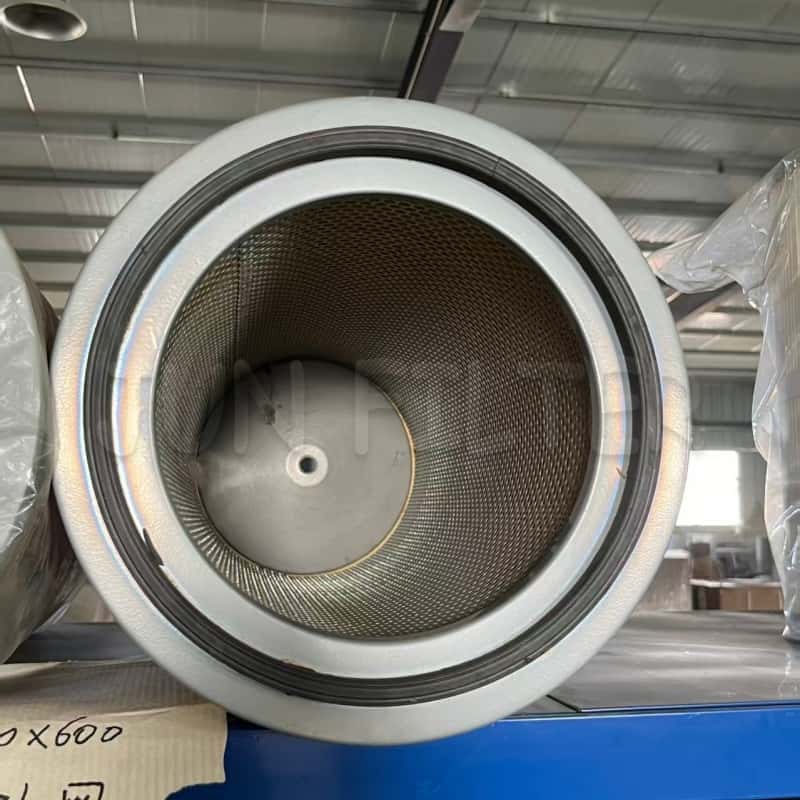

End cap sealing ring

Installed at both ends, providing an airtight connection

Products Specification

Product Name	Heavy‑Duty Air Filter Element
Filter Media	Reinforced high‑efficiency filter paper
End cap material	PU / Metal end cap
Sealing	High‑elasticity sealing gasket
Main use	Air intake system for compressors and heavy industrial machinery

Products Application Fields

Heavy-Duty Air Filter Element is widely applied in many industrial filtration scenarios:

Screw air compressors working in heavy‑dust workshops

Mining, quarry and construction site equipment

Wood processing factories

Cement, building materials production plants

Our Service

Packing and sending

packing is sturdy and shipping speed is very fast.

packing and sending

How To Cooperate With Us?

Our address

Xinxiang, Henan, China

Phone Number

+8618738502673

E-mail

admin@junlvfilter.com

FAQ

Q1: What is Heavy‑Duty Air Filter Element different from ordinary air filter?

A1: It adopts reinforced filter material with larger dirt‑holding capacity, specially built for heavy‑dust harsh environment, longer service cycle compared with standard air filter.

Q2: When should I replace this heavy‑duty air filter element?

A2: It is usually determined based on the operating conditions. When the inlet pressure difference significantly increases, it should be replaced in a timely manner, especially in high working environments.

Q3: What risks will overdue replacement bring?

A3: Filter will be clogged, intake resistance increases and equipment efficiency drops. Dust enters internal system and accelerates wear of rotor, oil filter and air‑oil separator.

Q4: Do you accept OEM customization?

A4: Yes, we can produce according to customer part numbers, samples or technical drawings.
