Products Description
The coalescing filter cartridge is a critical functional element in precision filtration systems, specifically engineered for liquid-liquid and gas-liquid separation. Its primary purpose is to efficiently remove emulsified water and minute liquid droplets from hydrocarbon fluids or gas streams . The cartridge serves a dual function: it filters out solid particulate contaminants from the media while simultaneously demulsifying and coalescing emulsified water droplets into larger, separable water globules, thereby achieving deep purification.
coalescing filter for compressed air
*High pollution capacity Imported filter materials are selected, which can accommodate high quality particle pollution per unit area, large pollution capacity, and long service life.
*Stable filtering accuracy Good processing technology reduces the
damage of filter materials caused by mechanical force during wave bending processing, which can cause filtration failure andensure stable and uniform filtration accuracy of the filter element.

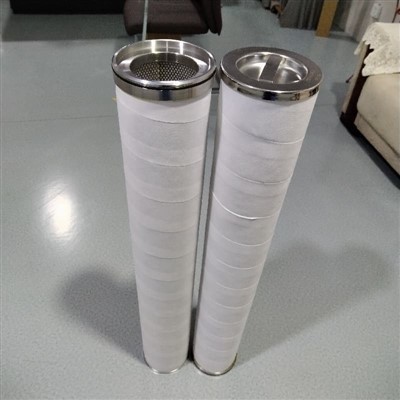

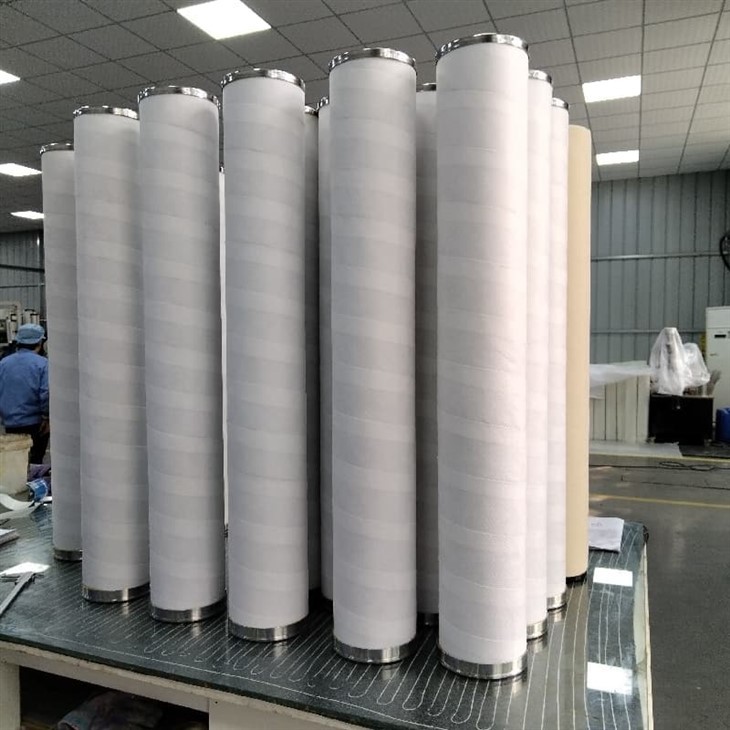

product display
coalescing air filters
Coalescing filter cartridges are widely utilized across industries requiring precise removal of water and particulates :
Aviation Fuel and Petrochemicals: Dehydration and purification of jet fuel, gasoline, and diesel; removal of condensate from hydrocarbons, LPG, and natural gas pipelines in refineries and petrochemical plants .
Power Generation and Industrial Lubrication: Oil-water separation and purification of turbine oils, hydraulic fluids, and lubricating oils .
Gas Processing: High-efficiency removal of entrained droplets and oil aerosols from compressed air, instrument air, fuel gas, and coal-bed methane, protecting downstream dryers, adsorption towers, and sensitive pneumatic instruments .
Product Parameter
| Initial Pressure Drop | ≤ 0.02 MPa (clean element, at rated flow) |
| Max. Allowable Pressure Drop | 0.15 MPa (recommended change-out value) |
| Nominal Diameter | 50 / 100 / 150 / 300 mm (customizable) |
| Nominal Length | 300 ~ 2000 mm (customizable) |
| Filter Media Material | Glass fiber / Polyester fiber / Polypropylene |
| Core / Support Material | Stainless steel 304 / 316 / 316L / Carbon steel (zinc-plated) |
| End Cap Material | Epoxy resin / Stainless steel / Nylon |
| Seal Material | NBR / FKM / EPDM |
| Operating Temperature | -20 ℃ ~ +150 ℃ (material-dependent) |
| Operating Pressure | ≤ 2.5 MPa (standard) / ≤ 35 MPa (high-pressure, customizable) |
| Rated Flow Rate | 0.5 ~ 100 m³/h (size-dependent) |
certificate
We pride ourselves on strong R&D capabilities, flexible customization options, and competitive pricing. Our team works closely with clients to develop tailored solutions that meet specific market requirements.
Packaging and Transportation
How To Cooperate With Us?
We are pleased to present our comprehensive packaging and transportation solutions tailored specifically for your international trade operations. Our services are designed to ensure that your goods reach their global destinations safely, efficiently, and in full compliance with all relevant customs and shipping regulations.
Our address
Hongqi District, Xinxiang City, Henan
Phone Number
86-18738502673
admin@junlvfilter.com
FAQ
Q1: How can I tell when the cartridge needs replacement?
Replacement is primarily determined by the operating differential pressure, rather than by time alone. When the pressure drop rises to 0.15 MPa (approx. 15 psi), the cartridge is severely clogged and must be replaced. Additionally, if the effluent free water content consistently exceeds the process limit, replacement is advised even if the pressure drop is still below the threshold. We recommend keeping regular records of initial and operating pressure drops for optimal maintenance scheduling.
Q2: Is the cartridge suitable for media containing surfactants?
Special attention is required: the coalescing performance is significantly inhibited in media with high surfactant content (e.g., emulsifiers or additives). Surfactants reduce the oil-water interfacial tension, preventing small droplets from coalescing into larger ones. If your media contains such components, we recommend upstream pretreatment (e.g., demulsifier injection or heating/settling) or selecting our specially designed anti-emulsification enhanced cartridge.
Q3: Can the cartridge be cleaned and reused?
No, the coalescing cartridge is a single-use consumable and is not recommended for cleaning and reuse. Washing or chemical backwashing will damage the microscopic fiber structure and surface treatment of the glass or polyester media, causing irreversible loss of coalescing efficiency and potential fiber shedding, which may contaminate downstream systems. To reduce operating costs, we suggest installing a pre-filter upstream to protect and extend the service life of the main coalescing cartridge.
factory profile
Xinxiang Jun Filters and Chemical Co.,Ltd
Xinxiang Jun Filters and Chemical Co.,Ltd.is a professional manufacturer engaged in the design and production of filters,filtration equipment, purification devices, and oil-water separation devices.The company has gathered a large number of professional, senior engineers and other technological elites, specializing in design research and development manufacturing.
The R&D team is strong, with a high level of professional technology and rich practical experience. The company has advanced production equipment and a complete quality and safety assurance system.
