Products Description
pp pleated filter .PP pleated water filter cartridges are precision depth‑filtration elements manufactured using polypropylene microfiber membrane as the core filtering medium. The membrane is pleated into multiple layers by an automated pleating machine, and then integrally sealed with support layers, drainage nets, end caps, and a central core via thermal welding technology-free from adhesives, surfactants, or fibre shedding. The production process complies with GMP standards, and the cartridges can withstand steam sterilisation and hot‑water disinfection. Combining surface retention with depth adsorption, they efficiently remove suspended solids, colloids, and microorganisms while offering high dirt‑holding capacity, making them ideally suited for industrial applications requiring stringent cleanliness and chemical stability.pp pleated filter .

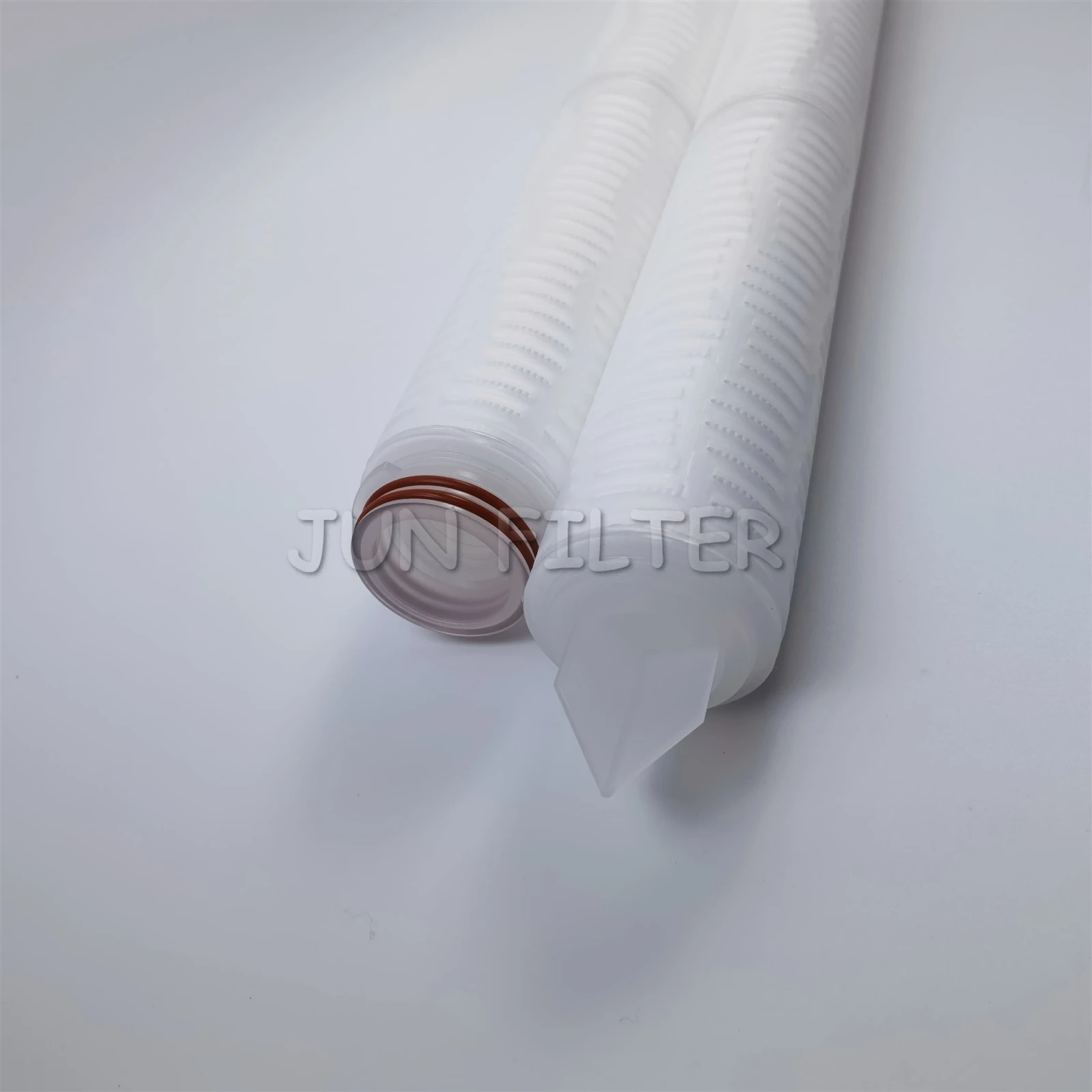

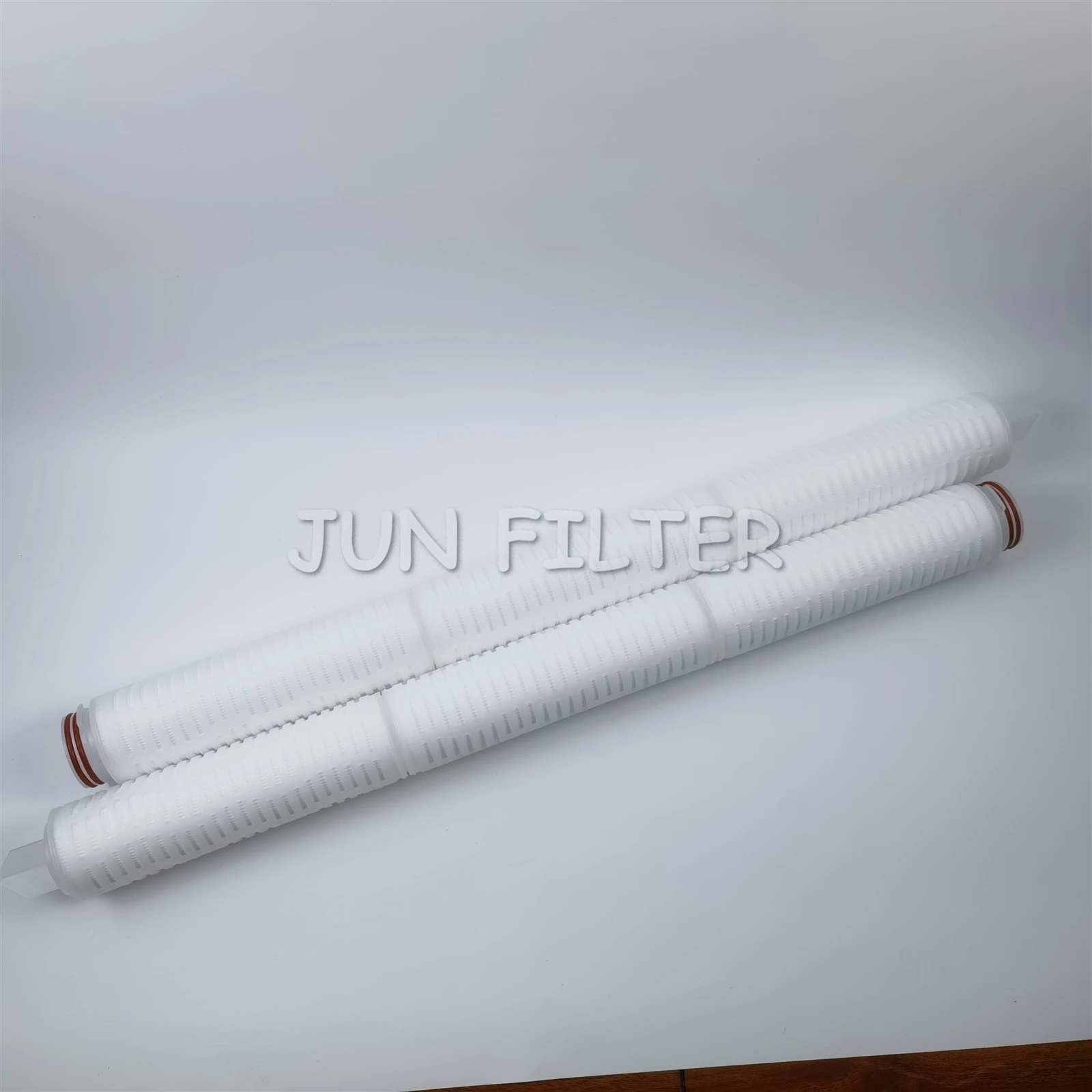

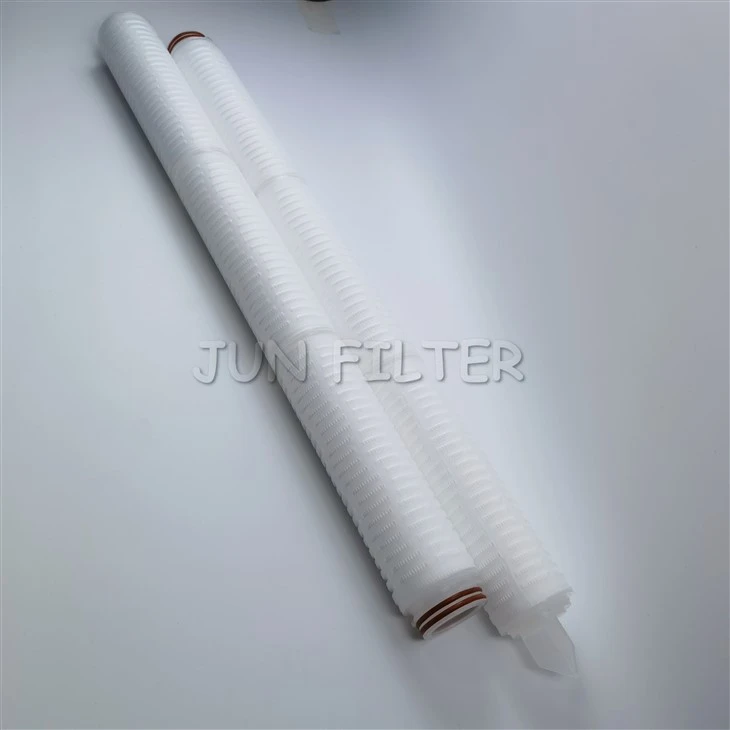

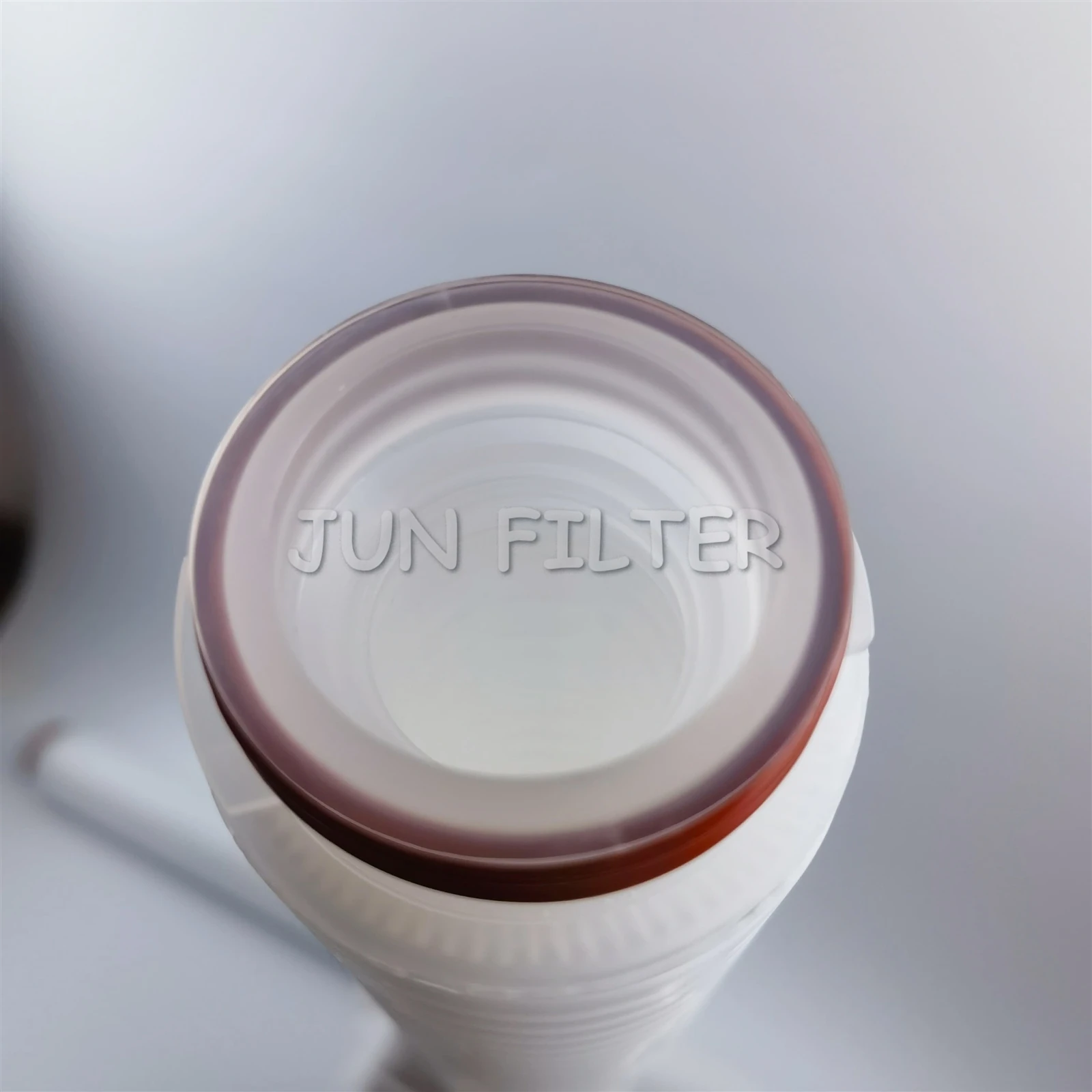

product display
Applications
Pharmaceutical and bioprocessing: Decarbonisation of APIs, prefiltration for Water for Injection (WFI), clarification of sera and culture media, and pre‑sterilisation treatment for fermentation broths.
Electronics and semiconductor: Final polishing for ultrapure water (UPW), particle control in photoresists and cleaning baths, and recirculation filtration of CMP slurries.
Food and beverage: Sediment removal and security filtration for drinking water, mineral water, carbonated drinks, wines, fruit juices, edible oils, and condiments.
Fine chemicals and coatings: Removal of impurities from resin solutions, electroplating baths, cutting fluids, inks, paints, and adhesives.
Water treatment and environmental protection: Pre‑protection for reverse osmosis (RO) systems, prefiltration in water reclamation, side‑stream filtration for industrial cooling loops, and pre‑treatment for seawater desalination.
product feature
Filter precision optional
Large filtration area, high flow rate, low pressure drop
01
We can customize it for you
Thermal welded construction – no binders, no media shedding
02
Support customization
Uniform pore size with high retention efficiency
03
high qualitry
Resistant to acids, alkalis, and organic solvents; wide pH range
04
Xinxiang Jun Filters and Chemical Co.,Ltd.
Our address：Hongqi District, Xinxiang City, Henan
Phone Number：86-18738502673
E-mail：admin@junlvfilter.com
Product Parameter
|
Length |
20 inch, 40 inch, 60 inch |
|
End Cap |
HFP, HFD, HFM, etc |
|
Filtration Area |
13 ㎡/40 inch |
|
Normal Operating Temp. |
Up to 60℃ |
|
Max.Operating Temp. |
80℃ at P≤1.0 bar |
|
Max. Operating Pressure |
4.2 bar at 25℃ |
|
Recommended change out differential pressure |
2.5 bar at 25℃ |
|
Normal Flow Direction |
Inside to outside |
|
PH Value compatibility |
1-13 |

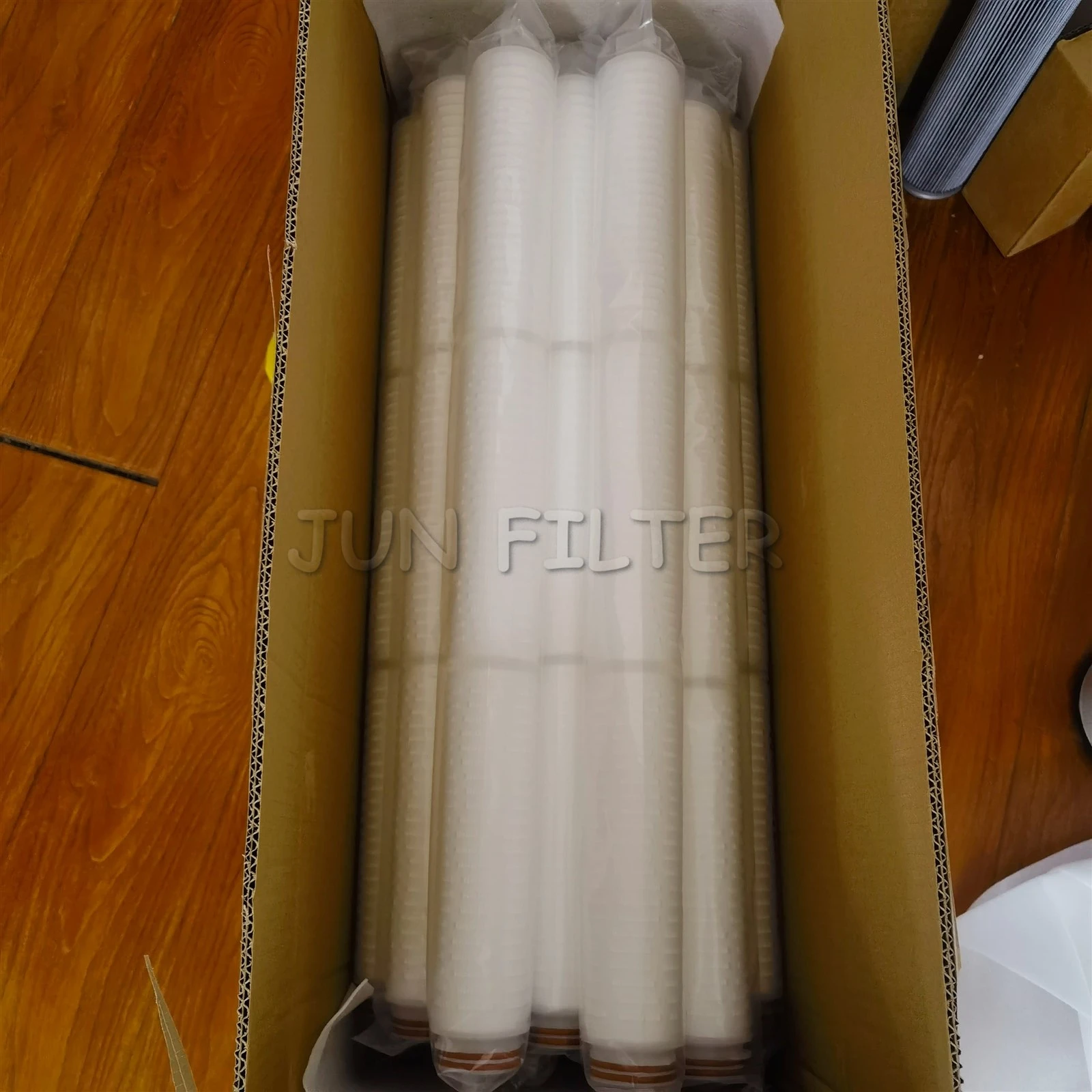

package and transport
To facilitate smooth customs clearance, we manage all necessary trade documents, including but not limited to commercial invoices, packing lists, bills of lading, certificates of origin, and insurance policies. We stay up to date with the latest changes in trade laws and sanctions, ensuring your shipments are fully compliant and avoiding unnecessary delays or penalties.
company profile
Xinxiang Jun Filters and Chemical Co.,Ltd.is a professional manufacturer engaged in the design and production of filters,filtration equipment, purification devices, and oil-water separation devices.The company has gathered a large number of professional, senior engineers and other technological elites, specializing in design research and development manufacturing.
The R&D team is strong, with a high level of professional technology and rich practical experience. The company has advanced production equipment and a complete quality and safety assurance system.
Our address：Hongqi District, Xinxiang City, Henan
Phone Number：86-18738502673
E-mail：admin@junlvfilter.com
FAQ
1. Q: Can the cartridge withstand high temperatures and repeated sterilization?
A: Yes. Max continuous operating temperature is 80 °C, with short-term tolerance up to 95 °C. Supports SIP, autoclave, and hot water disinfection, with stable performance after multiple sterilization cycles.
2. Q: How to determine when to replace the cartridge?
A: Monitor the online differential pressure gauge. Replace when ΔP reaches 0.20–0.30 MPa. Alternatively, conduct regular effluent turbidity or particle counts-significant quality decline also indicates replacement.
3. Q: Is there any risk of extractables or leachables contamination?
A: No. The cartridge is fully thermal-welded-no adhesives, no surfactants. TOC extractables ≤ 0.5 mg per cartridge, compliant with FDA and food-grade standards, ensuring no contamination of the filtrate.
