Products Description

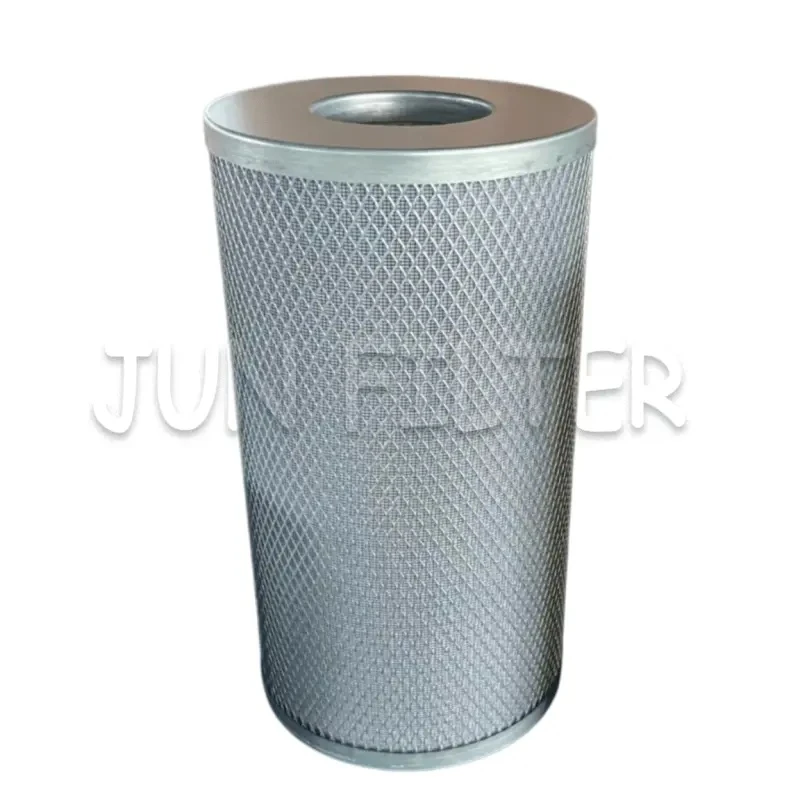

Diamond Mesh Air Filter Element is a reusable primary pre filter cartridge that adopts a three-dimensional diamond mesh structure and is widely used in air handling units, ventilation ducts, dust collectors, and equipment intake pre filtration.

This type of filter can be repeatedly cleaned and reused, effectively reducing long-term procurement costs. Double layer metal mesh protection, impact resistant filter element, not easily deformed or damaged; The pleated filter material has strong dust holding capacity, low air inlet resistance, ensures the gas production efficiency of the air compressor, extends the service life of the filter material, is easy to disassemble and maintain.

Custom production is supported according to customer drawings, samples or dimension requirements for global industrial purchasers.

Diamond shaped galvanized metal mesh

The inner and outer diamond shaped metal mesh is wrapped to protect the filter paper, resist the impact of air flow, and prevent the filter paper from being damaged or collapsing.

High capacity dust filter paper

The folded and folded structure of the filter paper increases the filtering area, has a large dust holding capacity, low air intake resistance, and ensures sufficient air intake for the air compressor.

Galvanized metal end cap

The upper and lower steel metal end caps are firmly bonded and have good sealing to prevent dirty air from leaking into the host through the gap between the end caps.

Long service life

Washable and reusable, reducing replacement frequency and total operating costs

Products Details

External metal mesh

Metal punched mesh protects the internal filter material

Longitudinal reinforcement bars

Strengthen the structural strength of the filter cartridge cylinder

End cover

Seal both ends of the filter element and provide installation interface

Supporting skeleton

Inner metal skeleton supports filter material structure

Products Specification

Product Name	Diamond Mesh Air Filter Element
Structure	diamond‑shaped metal mesh
Mesh Material	Galvanized metal / Aluminum
Application	Pre‑filtration for ventilation, AHU, dust collector and industrial equipment
Filter material	filter paper

Products Application Fields

Diamond Mesh Air Filter Element is widely used：

Factory ventilation duct and fresh‑air systems

Dust collector front‑end pre‑filtration

Air compressor intake pre‑filter

Workshop air purification equipment

why choose us

Our Service

R&D and Manufacturing

Our highly experienced engineers combine deep technical expertise with hands-on manufacturing experience to deliver reliable products for challenging environments.

Packaging and Shipping

We prioritize safe transit through rigorous carton reinforcement and professional global shipping standards, protecting your investment throughout the journey.

packing and sending

How To Cooperate With Us?

Our address

Xinxiang, Henan, China

Phone Number

+8618738502673

E-mail

admin@junlvfilter.com

FAQ

Q1: What are the strengths of diamond mesh air filter element?

A1:Diamond mesh improves impurity interception while keeping low air resistance. High mechanical strength, washable for repeated use, suitable for heavy‑duty pre‑filtration scenarios.

Q2: How to clean this diamond mesh air filter element?

A2: Rinse with clean water to flush away dust, fully dry before reinstallation. Avoid corrosive cleaning agents. Replace if mesh is damaged or deformed.

Q3: Can I get custom‑made sizes?

A3: Yes, OEM custom sizes are available based on your installation size, drawings or samples.

Q4: How long is its service cycle?

A4: Service life depends on dust concentration and cleaning frequency. Replace once mesh deforms or cannot restore filtration performance after washing.
