Products Description
Features
High throughput design, with a single cartridge delivering 30–100 m³/h, substantially reducing the total number of cartridges required;
Graded pore structure enabling depth filtration with high contaminant retention capacity, extending change-out intervals;
Low initial differential pressure, promoting energy-efficient operation and enhanced system performance;
Compact construction for simple, quick installation and minimized maintenance efforts;
Versatile material options for filter media and auxiliary components, customizable to specific process conditions.

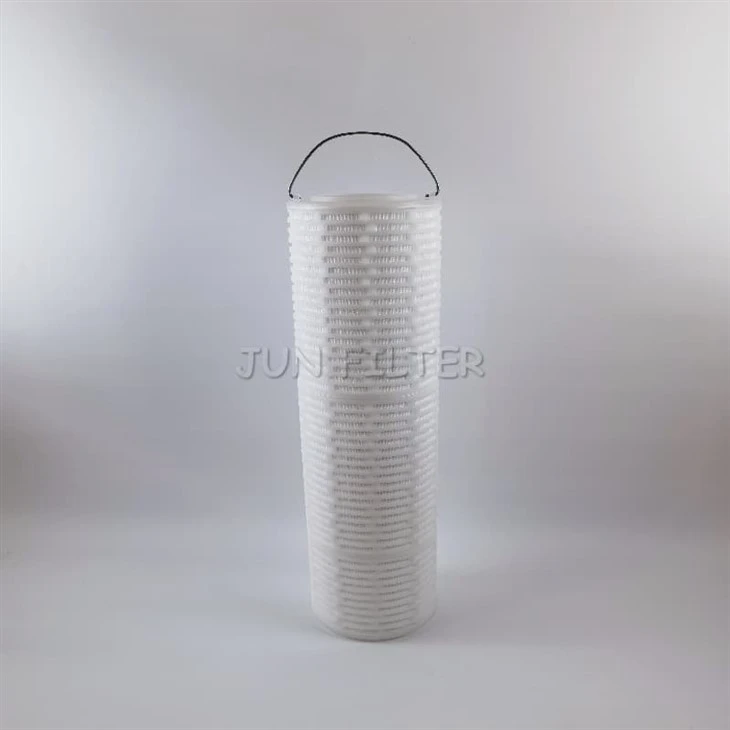

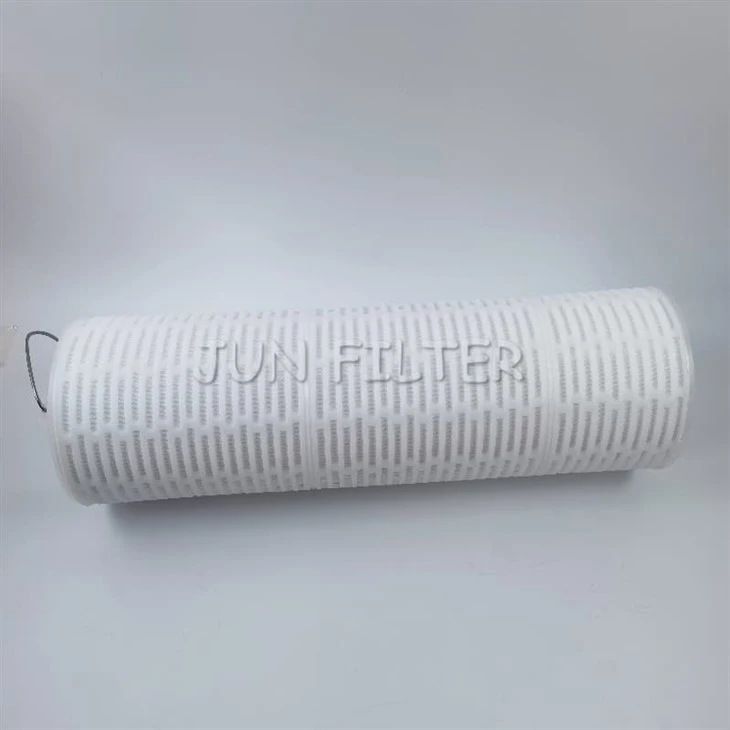

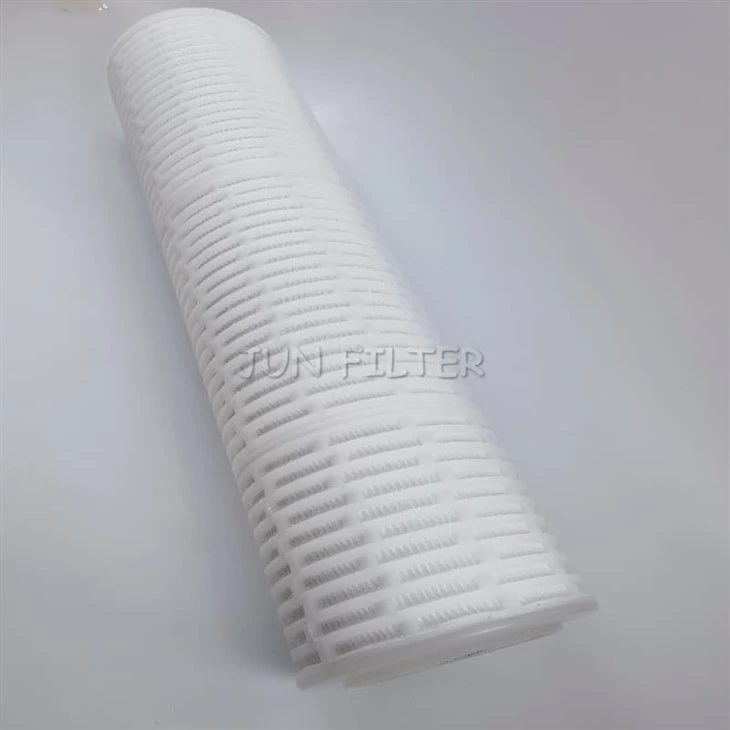

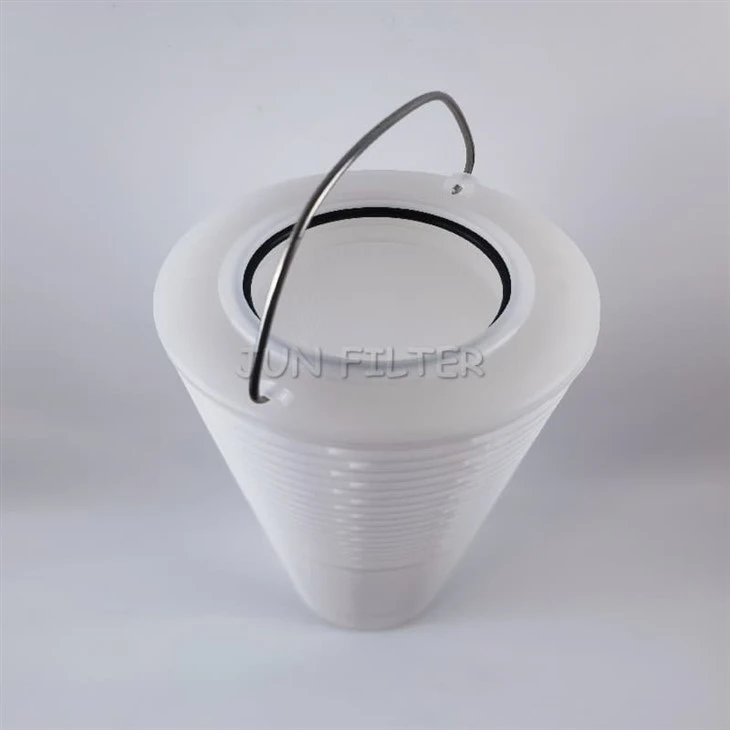

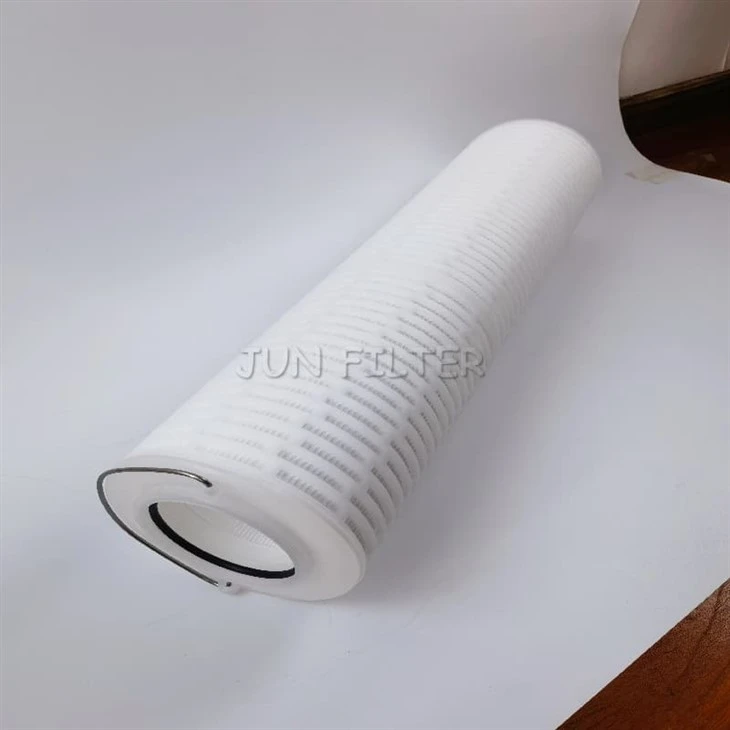

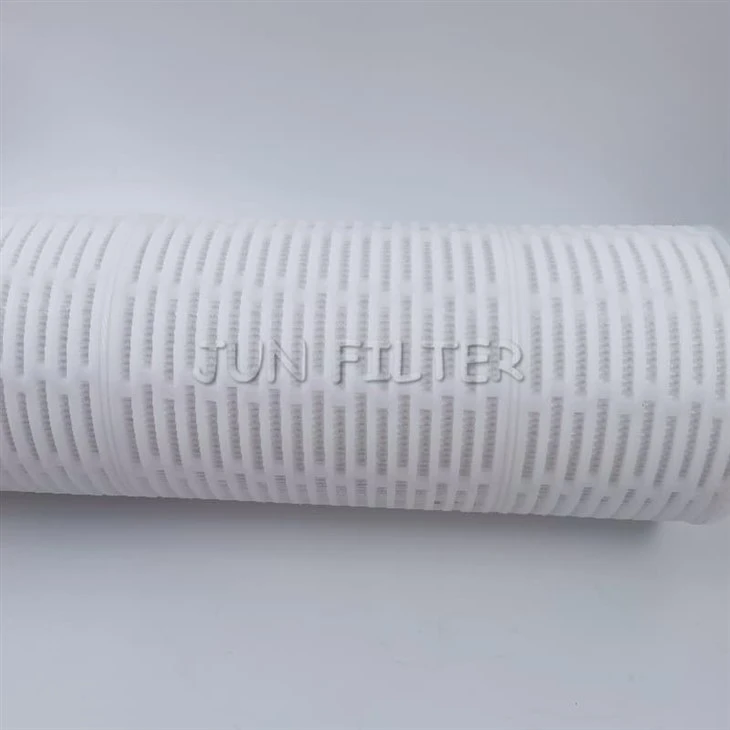

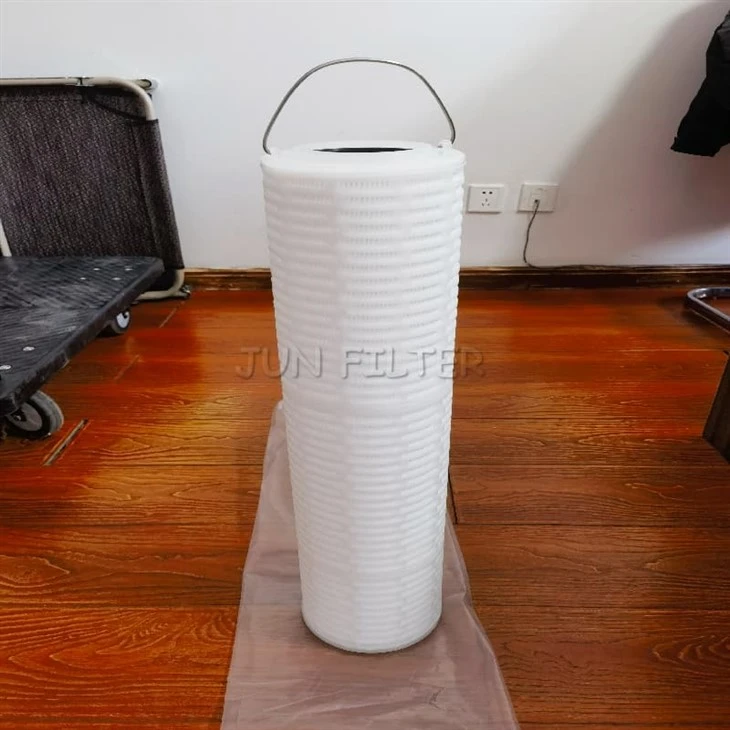

large flow cartridge.High-flow filter cartridges are critical consumable elements used in high-capacity liquid filtration systems. Featuring a large-diameter design (typically 6 inches) and deep-bed filtration mechanisms with graded pore structures, these cartridges effectively remove suspended solids and particulate contaminants even under high flow velocities. Compared to conventional low-flow cartridges, high-flow designs require fewer units and less installation space to meet large-scale industrial water treatment demands, while significantly reducing manual replacement frequency and maintenance costs. Engineered for an optimal balance of high dirt-holding capacity, low initial pressure drop, and extended service life, they are the filtration medium of choice for modern large-scale water treatment systems.large flow cartridge.
product feature
High Flow Filter Water Filter
Factory for more than 20 year and stable Supply chain with deep cooperation , Meet your one-stop needs .
Xinxiang Jun Filters and Chemical Co.,Ltd.
Our address：Hongqi District, Xinxiang City, Henan
Phone Number：86-18738502673
E-mail：admin@junlvfilter.com
Product Parameter
|
Seal Method |
Thermal Bonded, No Adhesives |
|
Outer Diameter |
160mm with cage |
|
Length |
20 inch, 40 inch, 60 inch |
|
End Cap |
HFP, HFD, HFM, etc |
|
Filtration Area |
13 ㎡/40 inch |
|
Normal Operating Temp. |
Up to 60℃ |
|
Max.Operating Temp. |
80℃ at P≤1.0 bar |
|
Max. Operating Pressure |
4.2 bar at 25℃ |
|
Recommended change out differential pressure |
2.5 bar at 25℃ |
|
Normal Flow Direction |
Inside to outside |
|
PH Value compatibility |
1-13 |
package and transport
All shipments are prepared using high-quality, export-grade materials that meet or exceed international packaging requirements. We offer customized crating, palletizing, and wrapping options to protect a wide range of products-from fragile electronics to heavy machinery. Each package is clearly labeled with handling instructions, carton marks, and shipment details in accordance with your specific requirements and the destination country's import regulations.
company introduction
Xinxiang Jun Filters and Chemical Co.,Ltd.is a professional manufacturer engaged in the design and production of filters,filtration equipment, purification devices, and oil-water separation devices.The company has gathered a large number of professional, senior engineers and other technological elites, specializing in design research and development manufacturing.
The R&D team is strong, with a high level of professional technology and rich practical experience. The company has advanced production equipment and a complete quality and safety assurance system.
Our address：Hongqi District, Xinxiang City, Henan
Phone Number：86-18738502673
E-mail：admin@junlvfilter.com
FAQ
1. What is the difference between high-flow and standard filter cartridges?
A single high-flow cartridge handles 30–100 m³/h, far exceeding the 1–10 m³/h capacity of standard cartridges. With a 6-inch large-diameter design, high-flow cartridges require fewer units, occupy less space, and simplify replacement and maintenance.
2. How do I determine the right flow rate for my system?
Base your selection on the system design flow and operating hours. We recommend sizing at 70%–80% of the design flow to allow a safety margin for water quality fluctuations and flow decay as the cartridge gradually loads.
3. Is higher filtration precision always better?
Not necessarily. Overly high precision shortens service life and raises operating costs. Choose a rating that satisfies the quality requirements of downstream equipment-no need to pursue the finest grade without cause.
4. Can cartridges from different manufacturers be used interchangeably?
If interface dimensions and seal positions match, physical installation is possible. However, filtration efficiency, pressure drop, and dirt-holding capacity may differ. We recommend conducting on-site tests with samples before switching suppliers in full.
